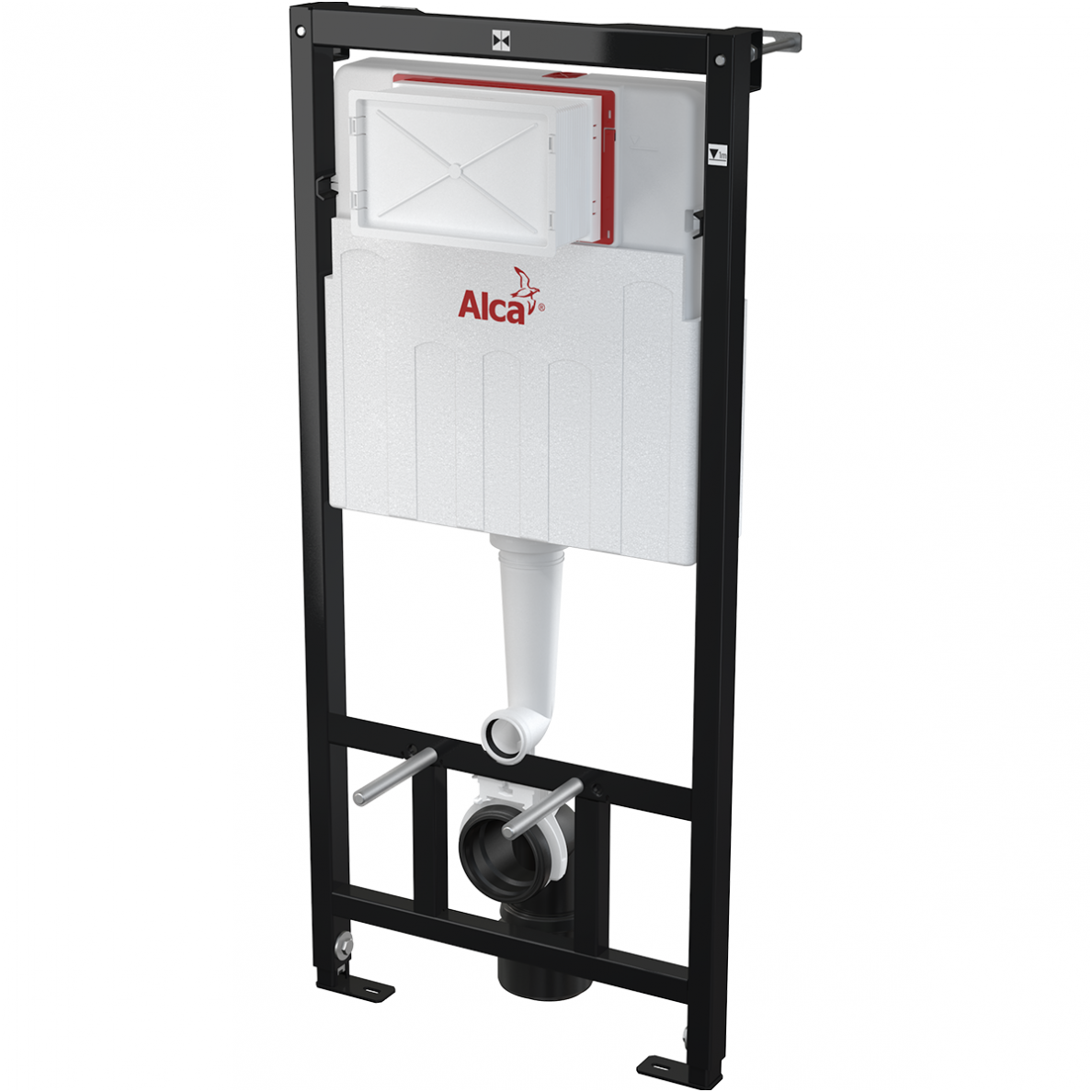

Alcadrain WC potinkinis rėmas

Application

• For wall-hung WC
• For mounting in front of a support wall or in to a plasterboard construction
• For floor thickness 0-200 mm
• For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm

Specifications

• Adjustable sliding anchor feet and a spring-lock system, with a range of 0-200 mm
• Visible marks for both leveling and the centerline
• Sliding rail holder for the waste connector can be set to eight positions between 0-93 mm
• Angle valve with the ability to connect to the Mepla piping system
• The frame allows the anchoring to a separate sufficiently strong plasterboard partition or in front of the bearing wall
• The installed module is sealed with a plasterboard panel and there is no need for any additional fixing or anchor elements
• The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
• Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats and sprays
• Dual flush, independently adjustable with hygienic reserve
• Suitable for installation of remote or sensor flushing
• Compatible with all ALCA flush plates
• Maintenance work without using any tools
• Water supply from the rear / top
• The cistern is made of one piece, thus ensuring 100% impermeability
• The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
• Installation depth adjustable from 20-95 mm
• Installation depth 125 mm
• Frame material: powder-coated metal
